SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna
SW409-ZT100 : 409MHz UHF Straight Rod Antenna

SW409-ZT100 : 409MHz UHF Straight Rod Antenna

SW409-ZT100, a gold plated straight rod antenna, designed specially for 409MHz/ meter reading communication system, it has good VSWR, Compact dimensions, easy installation, stable performance, with good anti-vibration and anti-aging ability.

Technical Parameter

  • Frequency Range: 409±5 MHz
  • VSWR: ≤ 1.5
  • Gain: 2.15 dBi
  • Input impedance: 50 Ω
  • Max power: 10 W
  • Polarization: vertical polarization
  • Height: 101.5±1 mm
  • Interface form: SMA-J
  • Lead wire: none
  • Antenna Color: Black
  • Weight: 9 g
Frequency Others
Type Rod
Gain 2.15dBi
Size (mm) 100~150

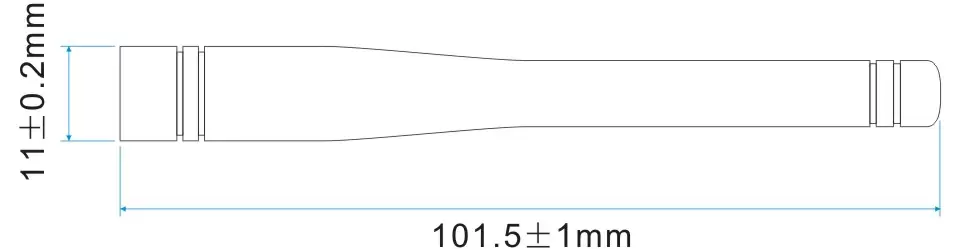

Mechanical sizes of rod antenna SW409-ZT100

Antennas have been tested under wireless simulated environment by Network Analyzer.

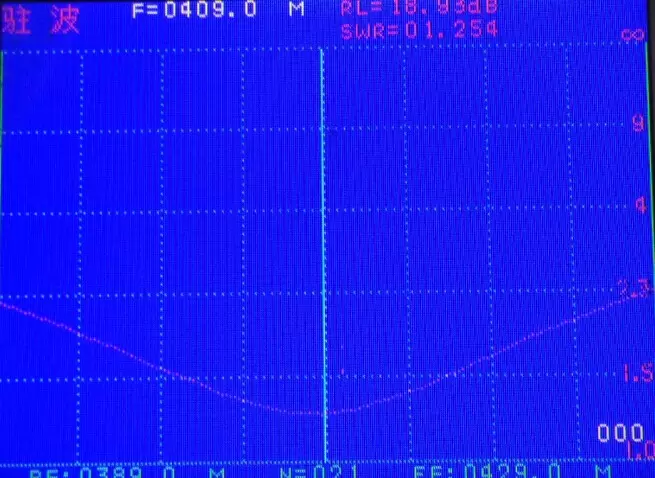

VSWR Charts for rod antenna SW409-ZT100
