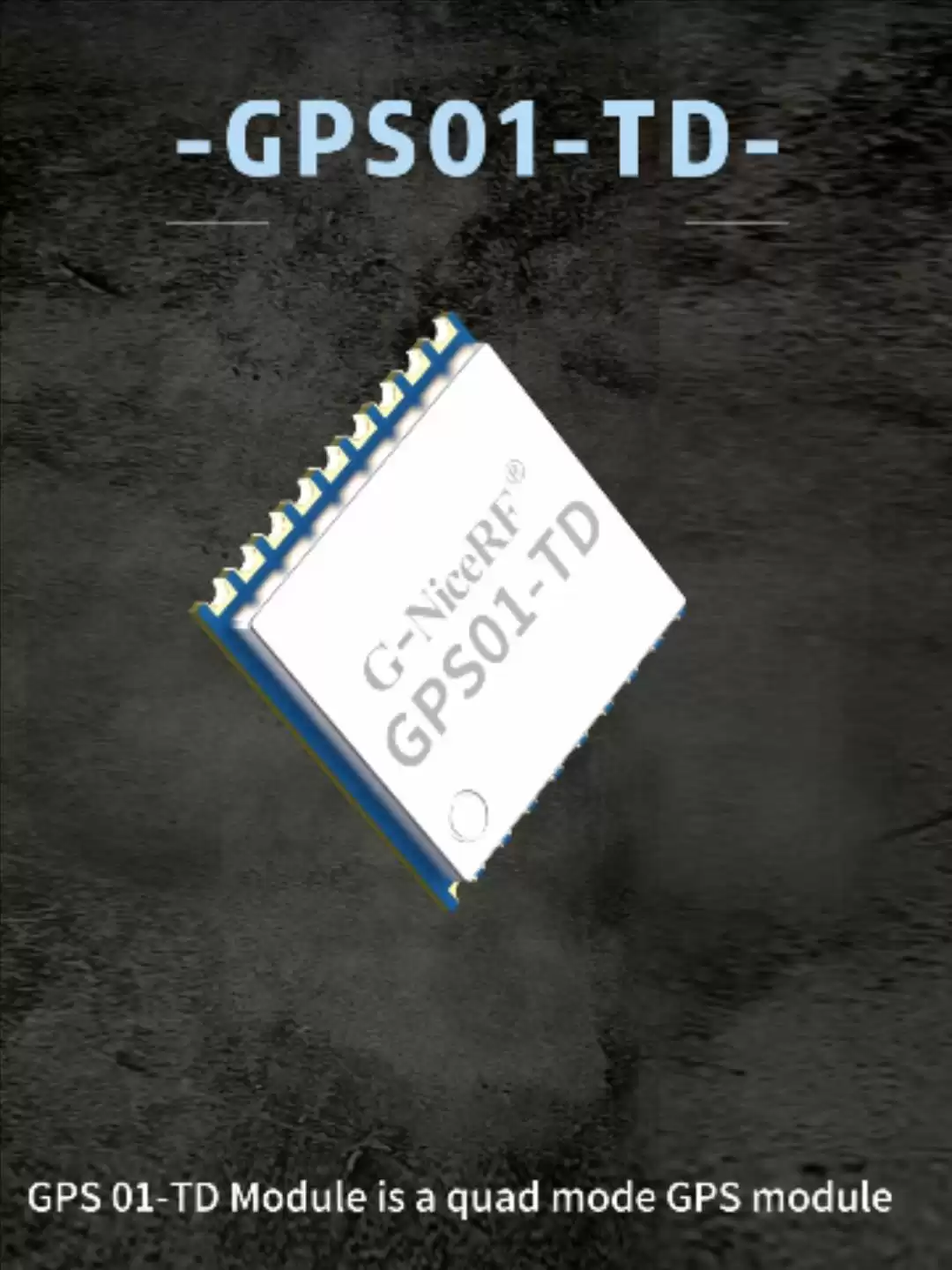

GPS01-TD : Quad-Mode Satellite Mini GPS Module Supports BDS/GPS/GLONASS/Galileo
GPS01-TD module is a quad-mode Mini GPS module that supports BDS/GPS/GLONASS/Galileo/QZSS/SBAS and fully supports BeiDou B3, which can provide users with high quality, strong anti-jamming and low-power positioning and navigation solutions.
| Parameter | Description | Minimum | Typical | Maximum | Unit | Condition |
| Operating conditions | ||||||
| Operating voltage range | VCC | 3.0 | 3.3 | 3.5 | V | |
| V_BCKP | 2.5 | 3.3 | 3.5 | V | ||
| Temperature range | Work | -40 | 85 | ℃ | ||
| Storage | -40 | 125 | ℃ | |||
| Current consumption | ||||||
| Receive current | < 35 | mA | @Dual mode， VCC=3.3V, V_BCKP=3.3V | |||
| Sleep current | < 25 | uA | VCC=0V, V_BCKP=3.3V | |||
| Radio frequency parameters | ||||||
| Positioning accuracy | Level | < 3 | m | @Open land | ||
| Altitude | < 4.5 | m | ||||
| Speed Measurement accuracy | <0.1 | m | ||||
| Sensitivity | capture | -147 | dBm | |||
| track | -163 | dBm | ||||
| External antenna gain | 30 | dB | ||||
| Speed measurement accuracy | < 0.1 | m/s | ||||
| Time to First fix | Cold start | < 28 | s | |||
| Hot Start | 1 | s | ||||
| Recapture | 1 | s | ||||
| Serial port parameters | ||||||
| Serial Port baud rate | 4800 | 115200 | 230400 | bps | ||
| Data update rate (Single-mode) | BDS/GPS/ GLONASS/ Galileo | 1 | 20 | Hz | Default 1 Hz | |
| Data update rate (Dual-mode) | BDS+GPS | 1 | 10 | Hz | ||
| BDS+GLONASS | 1 | 10 | Hz | |||
| BDS+Galileo | 1 | 10 | Hz | |||
| GPS+GLONASS | 1 | 10 | Hz | |||
| GPS+Galileo | 1 | 10 | Hz | |||
| GLONASS+Galileo | 1 | 10 | Hz | |||
| Data update rate (Tri-mode) | BDS+GPS+ GLONASS | 1 | 10 | Hz | ||
| BDS+GPS+Galileo | 1 | 10 | Hz | |||
| Data update rate (Quad-mode) | BDS+GPS+ GLONASS+Galileo | 1 | 10 | Hz | ||
| Type | GPS |
Features of Mini GPS Module GPS01-TD
- Support BDS B1/B1C, GPS L1 C/A GLO L1OF, Gal E1frequency point
- Support BDS/GPS/GLONASS/Galileo single-mode, dual-mode and multi-mode work, can switch between each other by command, default BDS/GPS/GLO tri-mode work
- Support A-GNSS assisted positioning
- Support power supply to active antenna
- With backup power input interface
- Support hot start
- Support external reset
- Support UART interface
- Cold start capture sensitivity up to -147dBm. Tracking sensitivity up to -163 dBm.
Applications of Mini GPS Module GPS01-TD
- Personal positioning and navigation products
- Vehicle, ship positioning and navigation
- Internet of Things
- Handheld portable device
The active antenna connection method is as follows:
The passive antenna connection method is as follows:
| Pin number | Pin definition | I/O | Level standard | Description |
| 1、10、12 | GND | — | Power ground | |
| 2 | TXD | O | 0-3.5 V | Serial interface |
| 3 | RXD | I | 0-3.5 V | Serial interface |
| 4 | 1PPS | O | 0-3.5 V | 1 pulse output per second |
| 5 | EXT_INT0 | I | 0-3.5 V | Reserved |
| 6 | V_BCKP | I | 2.5-3.5 V | Backup power input |
| 7 | VCC_IO | — | 3.0-3.5 V | IO power input |
| 8 | VCC | — | 3.0-3.5 V | Main power input |
| 9 | nRESET | I | 0-3.5 V | External reset, active low. Cannot be connected to ground through capacitor. |
| 11 | RF_IN | I | Antenna Input | |
| 13 | ANT_ON | O | 0-3.5 V | Reserved |
| 14 | VCC_RF | O | VCC | 3.3V output, powered for the antenna or LNA, not exceed 20mA |
| 15、18 | NC | — | ||
| 16 | SDA | I/O | 0-3.5 V | I2C interface |
| 17 | SCL | I | 0-3.5 V | I2C interface |
