RF4463PRO-868 : Si4463 CE-RED Certified 100mW 868MHz RF Module With 10PPM Crystal

Our company's RF4463PRO RF module uses Silicon Lab si4463, which is a highly integrated wireless ISM band transceiver chip. It has extremely low receiving sensitivity (-126 dBm), coupled with the industry-leading output power of +20 dBm, ensures extended range and improved link performance.
RF4463PRO uses lead-free technology for production and testing strictly. It also meets RoHS and Reach standards.
RF4463PRO modules have obtained CE-RED certification.

Download

Features of RF Module RF4463PRO

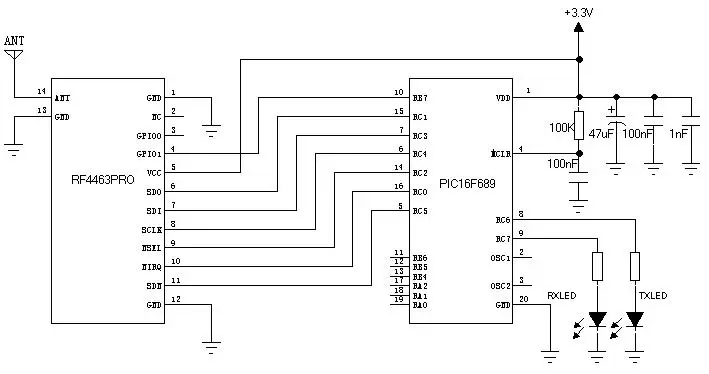

Typical Application Circuit of 868MHz RF Module RF4463PRO

Pin Definition 868

Pin NO	Pin Name	Description
1	GND	Power ground
2	NC	NC
3	GPIO0	Connect directly to the GPIO0 pin of the chip
4	GPIO1	Connect directly to the GPIO1 pin of the chip
5	VCC	Positive power supply 3.3V
6	SDO	0～VDD V digital output, provides serial readback function to internal control register
7	SDI	Serial data input. 0～VDD V digital input. This pin is a 4-wire serial data serial data stream bus.
8	SCLK	Serial clock input. 0～VDD V digital input. This pin provides a 4-wire serial data clock function.
9	nSEL	Serial interface select input pin. 0～VDD V digital input. This pin provides select/enable function for 4-wire serial data bus. This signal is also used to indicate burst read/write mode.
10	nIRQ	Interrupt output
11	SDN	Chip enable pin. 0～VDD V digital input. SDN=0 in all modes except shutdown mode. When SDN=1, the chip will be completely shut down and the contents of the register will be lost.
12	GND	Power ground
13	GND	Power ground
14	ANT	Connect with 50 ohm coaxial antenna

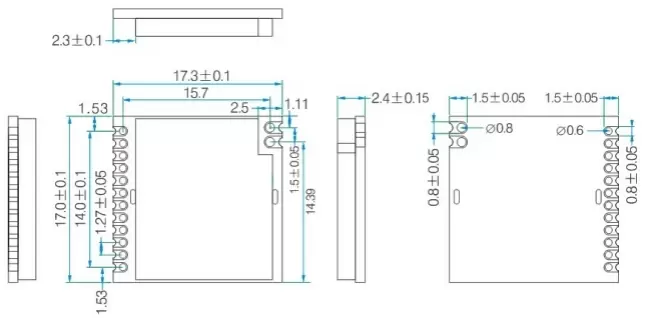

Mechanical dimensions of 868MHz RF Module RF4463PRO
