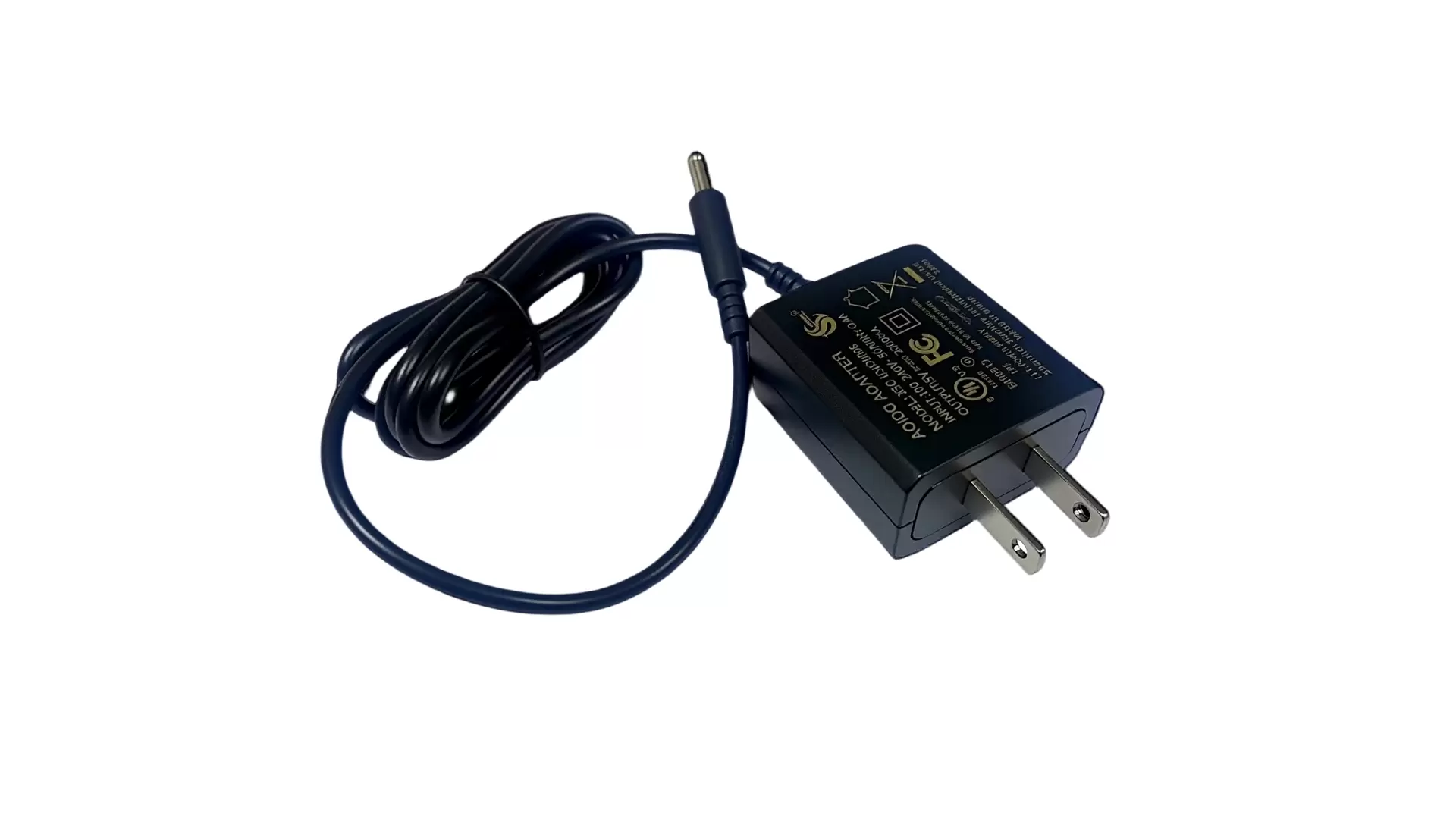

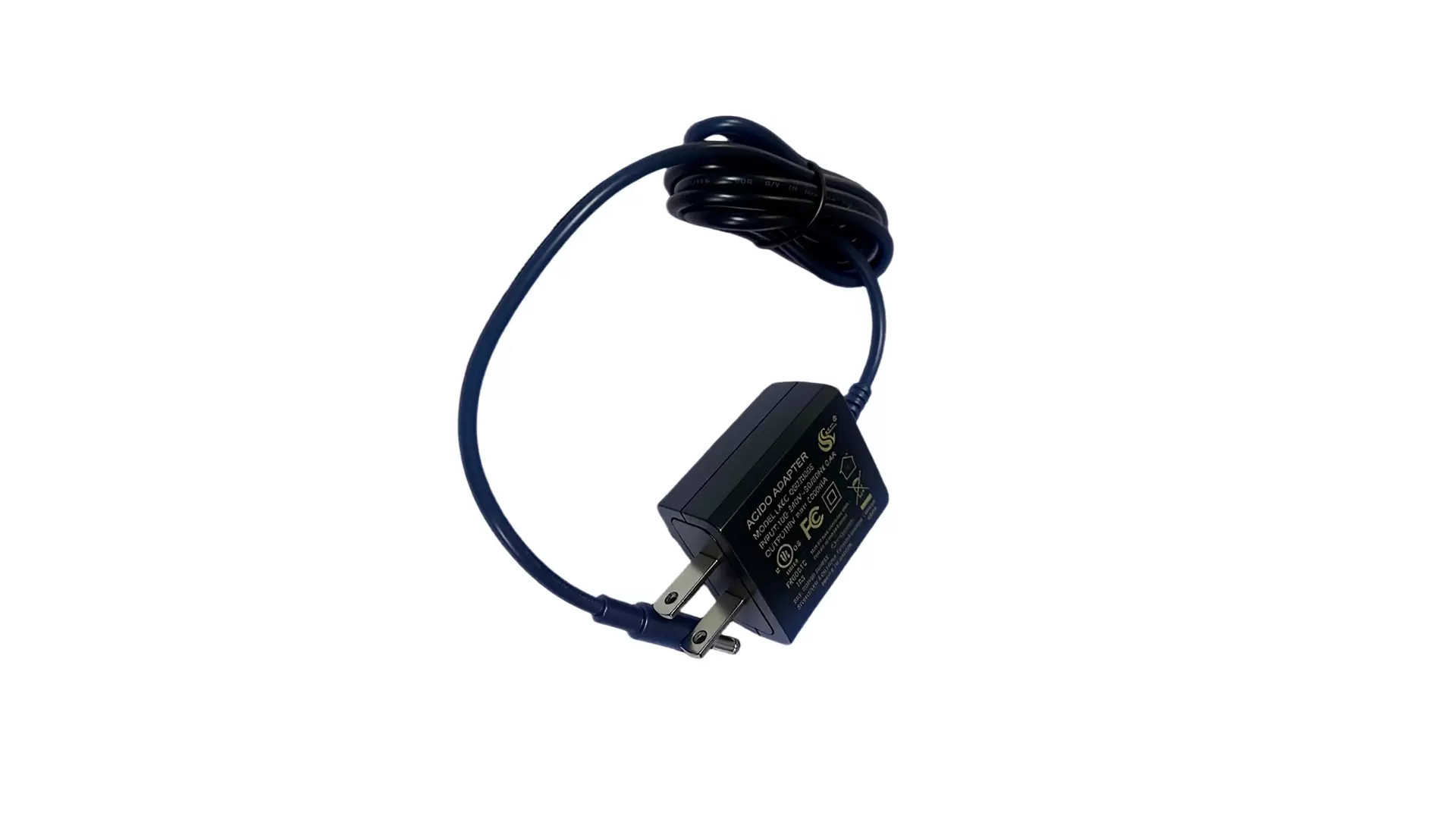

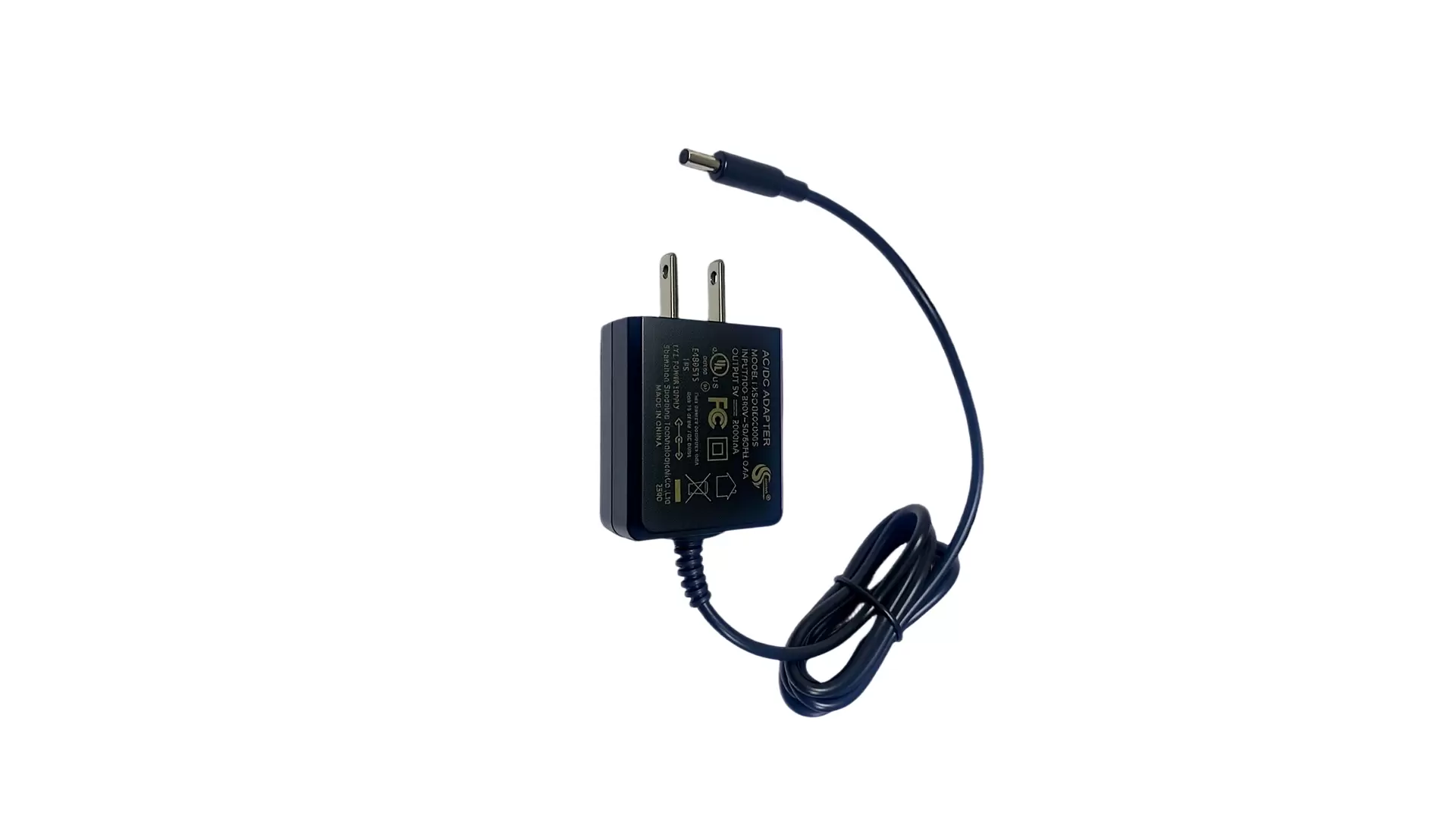

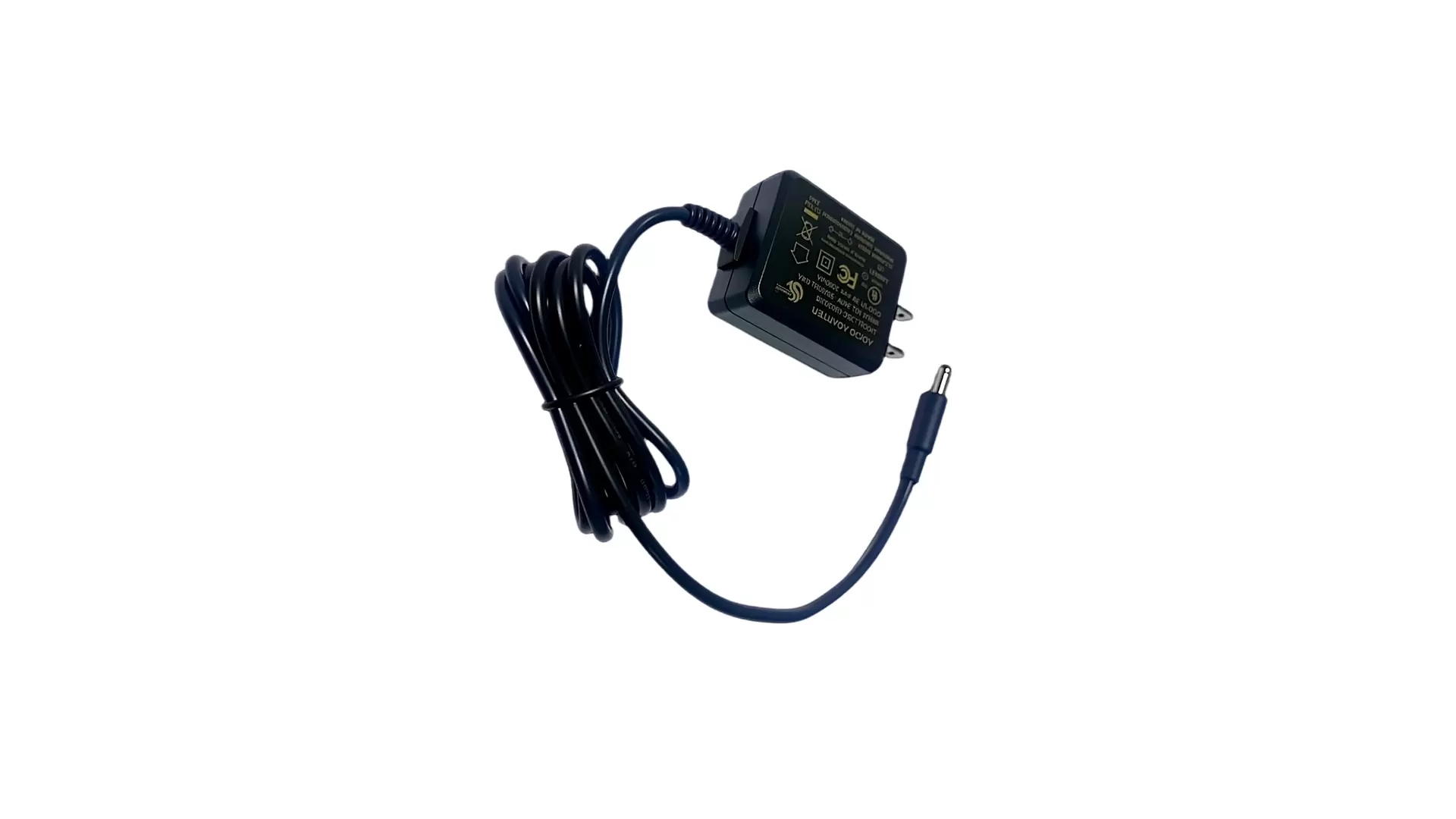

5V2A : DC Power Supply-High Quality IC Solution

Features

• DC output voltage: 5V
• Rated output current: 2A
• Output current range: 0～2A
• Ripple and noise: 100mVp-p
• DC output power: 10W
• Efficiency: 100%
• Input voltage range: 100V～260V
• Product Specification: American Standard
• DC line length: 1.2m
• DC head specification: 3.5*1.35*10mm
• Input current: 0.1A/100V～260V
• Inrush current: cold start current 30A/230V
• Leakage current＜0.5mA/240VAC
• Overload protection: 115%～135% Type: interval mode automatic recovery
• Overvoltage protection
• High temperature protection ≥105℃, interval mode, automatic recovery
• Temperature coefficient: ±0.02%/℃ (0～50℃)
• Pressure resistance: between input and output: 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC
• Working temperature, temperature: -10℃～+60℃, 20%～90%RH
• Dimensions: 96*43*31mm
• Weight: 0.06Kg
